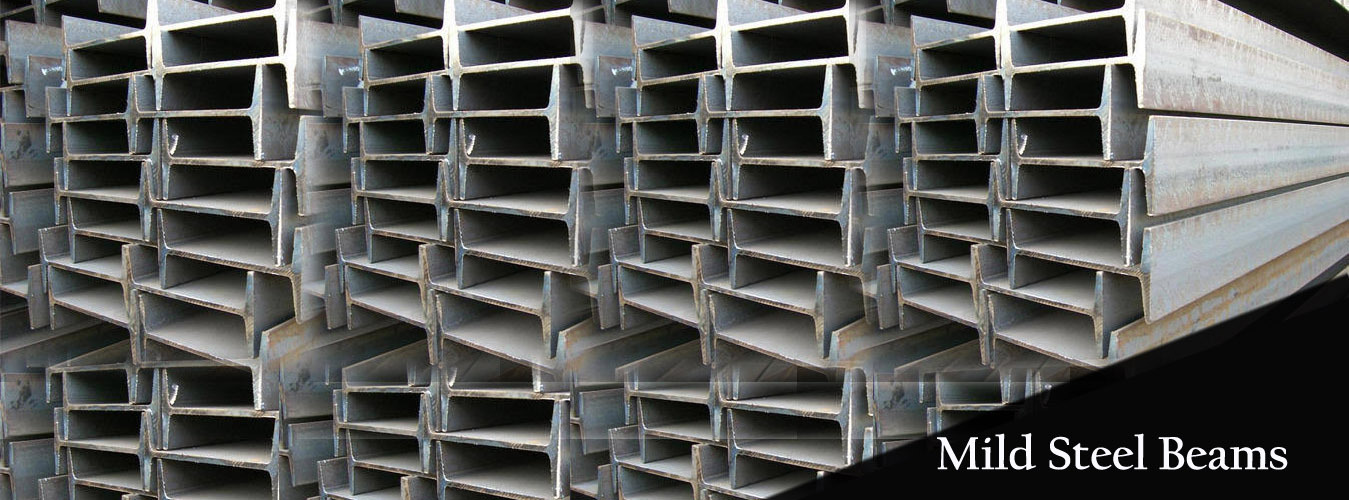

Mild Steel Beams

A Beam is a line structure that carries load primarily in bending. Beams are characterized by their profile (the shape of their cross-section), their length, and their material.

One of the most common types of steel beam is the I-beam or wide-flange beam. Beam provide economical floor and roof systems in applications requiring long clear spans and lighter weight systems.

The major applications are

Bridges
Flyovers
Pedestrians Walk Overs
Buildings

We supply a wide range of Columns, Universal Beams,Mild Steel Angles, HEA Beams including beams manufactured by Jindal.

Mild Steel Beams Specification:

Size	Weight in Kgs.	Weight in Kgs.
in mm	Per Feet	Per Mtr.
100 x 50	2.432	7.979
125 x 70	4.023	13.199
150 x 75	4.571	14.997
175 x 85	5.943	19.499
200 x 100	7.893	25.897
250 x 125	11.612	38.099
300 x 140	14.782	48.500
350 x 140	16.125	52.906
400 x 140	19.080	62.601
450 x 150	22.280	22.280
500 x 180	26.730	87.700
600 x 210	37.370	122.600

Beams manufactured by JINDAL are represented by Web Height, Flange Width & Section Weight.

JINDAL

Structural Sections

Beams

Sr. No.	Depth(mm)xFlange(mm)xSectional Weight(kg/m)
1	UB 203 X 133 X 25
	UB 203 X 133 X 30

2	UB 254 X 146 X 31
	UB 254 X 146 X 37
	UB 254 X 146 X 43

3	UB 305 X 165 X 40
	UB 305 X 165 X 46
	UB 305 X 165 X 54

4	UB 356 X 171 X 45
	UB 356 X 171 X 51
	UB 356 X 171 X 57
	UB 356 X 171 X 67

5	NPB/IPE 400 X 180 X 57.4
	NPB/IPE 400 X 180 X 66.3
	NPB/IPE 400 X 180 X 75.7

6	UB 406 X 178 X 54
	UB 406 X 178 X 60
	UB 406 X 178 X 67
	UB 406 X 178 X 74

7	NPB/IPE 450 X 190 X 67.2
	NPB/IPE 450 X 190 X 77.6
	NPB/IPE 450 X 190 X 92.4

8	UB 457 X 191 X 67
	UB 457 X 191 X 74
	UB 457 X 191 X 82
	UB 457 X 191 X 89
	UB 457 X 191 X 98

9	NPB/IPE 500 X 200 X 79.4
	NPB/IPE 500 X 200 X 90.7
	NPB/IPE 500 X 200 X 107.3

10	UB 533 X 210 X 82
	UB 533 X 210 X 92
	UB 533 X 210 X 101
	UB 533 X 210 X 109
	UB 533 X 210 X 122

11	NPB/IPE 600 X 220 X 107.36
	NPB/IPE 600 X 220 X 122.4
	NPB/IPE 600 X 220 X 154.5

12	WPB/HE 600 X 300 X 128.8
	WPB/HE 600 X 300 X 177.8
	WPB/HE 600 X 300 X 211.9
	WPB/HE 600 X 300 X 285.5

13	UB 610 X 229 X 101
	UB 610 X 229 X 113
	UB 610 X 229 X 125
	UB 610 X 229 X 140

14	WPB/HE 700 X 300 X 149.9
	WPB/HE 700 X 300 X 204.5
	WPB/HE 700 X 300 X 240.5
	WPB/HE 700 X 300 X 300.7

15	WPB/HE 800 X 300 X 172 [ on the anvil / subject prior agreement]
	WPB/HE 800 X 300 X 224 [ on the anvil / subject prior agreement]
	WPB/HE 800 X 300 X 262 [ on the anvil / subject prior agreement]
	WPB/HE 800 X 300 X 317 [ on the anvil / subject prior agreement]

16	WPB/HE 900 X 30 X 198 [on the anvil / subject prior agreement ]
	WPB/HE 900 X 30 X 252 [on the anvil / subject prior agreement ]
	WPB/HE 900 X 30 X 291 [on the anvil / subject prior agreement ]
	WPB/HE 900 X 30 X 333 [on the anvil / subject prior agreement ]

Columns manufactured by JINDAL are represented by Web Height, Flange Width & Section Weight.

JINDAL

Columns:-

Sr. No.	Depth(mm)xFlange(mm)xSectional Weight(kg/m)
1	UC 152 X 152 X 23
	UC 152 X 152 X 30
	UC 152 X 152 X 37

2	UC 203 X 203 X 46
	UC 203 X 203 X 52
	UC 203 X 203 X 60
	UC 203 X 203 X 71
	UC 203 X 203 X 86

3	UC 254 X 254 X 73
	UC 254 X 254 X 89
	UC 254 X 254 X 107
	UC 254 X 254 X 137
	UC 254 X 254 X 167

4	UC 305 X 305 X 97
	UC 305 X 305 X 118
	UC 305 X 305 X 137
	UC 305 X 305 X 158
	UC 305 X 305 X 198
	UC 305 X 305 X 240
	UC 305 X 305 X 283

SAIL (Steel Authority of India Limited)

Section	Dimensions	Sectional Weight	Length
	mm	kg/m	m
Beams/ Joists
	Draper Steel Plant
	175 x 85 x 5.8	19.6	10 to11.5
	200 x 100 x 5.7	24.2
Beams	Bhilai Steel Plant
	250 x 125 x 6.9	37.3	10 to 13
	300 x 140 x 7.7	46	for all dimensions
	350 x 140 x 8.1	52.4
	400 x 140 x 8.9	61.5
	450 x 150 x 9.4	72.4
	500 x 180 x 10.2	86.9
	600 x 210 x 12	123

Columns manufactured by JINDAL are represented by Web Height, Flange Width & Section Weight.

VIZAG (RINL: - RASHTRIYA ISPAT NIGAM LIMITED )

Beams

Sr. No.	Side(mm) x Side(mm) x Thickness(mm)	Section Wt.(Kg/m)
1	IPE - BEAMS *180 X 91 X 5.3	18.8
2	HE - BEAMS *120 X 114 X 5	19.9
3	ISMB BEAMS 125 X 70 X 5	13.3
4	150 X 75 X 5	15.0
5	175 X 85 X 5.8	19.6

GRADES

Sectional Properties as per:-

For Beams :-

DIN :1025 - 1994 / IS :12778 - 1989 / IS :808 - 1989

Tolerance as per:-

For Beams :-

DIN :1025 - 1994 / IS :12779 -1989 / IS :1852 - 1985

Grades as per:-

For Beams :-

IS :2062 :E250 A - 2006
