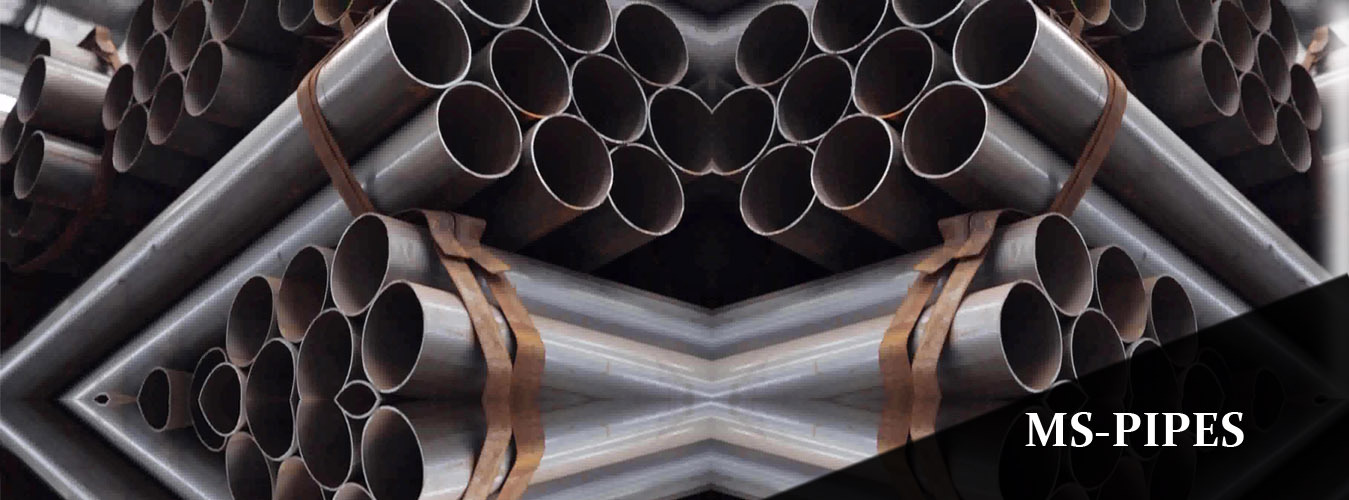

MS-PIPES

We offer our clients with a comprehensive range of MS Pipes and Tubes which are used in diverse industries. Our products are widely appreciated by the clients due to their high quality, durability and corrosion resistance. Mild Steel Pipe or Mild Steel Tubes have a wide range of use from making Shed, Scaffolding and Railing to Trolleys, Chassis and Racks. ERW and SW pipes are sourced from best of manufacturers to ensure relaibility of our products.

Pipes and Tubes of following grades are available with us:

IS : 1161
IS : 1239
IS : 3589
IS : 9295

MS-Pipes Specification:

NOMINAL BORE	OUTSIDE DIAMETER (OD)	CLASS	THICKNESS (T)	WEIGHT
MM	MM	CLASS	MM	KG/M
15	21.3	Light	2.0	0.947
		Medium	2.6	1.21
		Heavy	3.2	1.44
20	26.9	Light	2.3	1.38
		Medium	2.6	1.56
		Heavy	3.2	1.87
25	33.7	Light	2.6	1.98
		Medium	3.2	2.41
		Heavy	4.0	2.93
32	42.4	Light	2.6	2.54
32	42.4	Medium	3.2	3.10
32	42.4	Light	2.6	2.54
		Medium	3.2	3.10
		Heavy	4.0	3.79
40	48.3	Light	2.9	3.23
		Medium	3.2	3.56
		Heavy	4.0	4.37
50	60.3	Light	2.6	4.08
		Medium	3.6	5.03
		Heavy	4.5	6.19
65	76.1	Light	3.2	5.71
		Medium	3.6	6.42
		Heavy	4.5	7.93
80	88.9	Light	3.2	6.72
		Medium	4.0	8.36
		Heavy	4.8	9.90
100	114.3	Light	3.6	9.75
		Medium	4.5	12.2
		Heavy	5.4	14.5
125	139.7	Light	4.5	15.0
		Medium	4.8	15.9
		Heavy	5.4	17.9
135	152.4	Light	4.5	16.4
		Medium	4.8	17.5
		Heavy	5.4	19.6
150	165.1	Light	4.5	17.8
		Medium	48	18.9
		Heavy	5.4	21.3
150	168.3	Light	4.5	18.2
		Medium	4.8	19.4
		Heavy1	5.4	21.7
		Heavy2	6.3	25.2

PROPERTIES OF APL APOLLO STRUCTURA (SHS) IS : 4923 : 1997/EN 10219-1 : 2006*/ASTM A-500
SHS	Thickness	Sec Area	Unit Wt	Moment of Inertia		Radius of		Elastic Modulus		Torsional Constants		Outer Surface Area
SHS	Thickness	Sec Area	Unit Wt	lxx	lyy	Gyration		Elastic Modulus		Torsional Constants		per m
D X B	t	A	W	cm4	cm4	rxx	ryy	zxx	zyy	J	B
mm	mm	cm 2	kg/m	cm4	cm4	cm	cm	cm3	cm3	cm4	cm3	m2
25 x 25	1.6	1.43	1.12	1.28	1.28	0.94	0.94	1.02	1.02	1.96	1.46	0.092
	2	1.74	1.36	1.48	1.48	0.92	0.92	1.19	1.19	2.29	1.68	0.09
	2.6	2.16	1.69	1.72	1.72	0.89	0.89	1.38	1.38	2.86	1.92	0.087
	3.2	2.53	1.98	1.89	1.89	0.86	0.86	1.51	1.51	2.96	2.07	0.084
32 x 32	2	2.3	1.8	3.36	3.36	1.21	1.21	2.1	2.1	5.3	5.3	0.118
	2.6	2.88	2.26	4.02	4.02	1.18	1.18	2.51	2.51	6.45	6.45	0.115
	3.2	3.42	2.69	4.54	4.54	1.15	1.15	2.84	2.84	7.41	7.41	0.112
38 x 38	2	2.78	2.18	5.88	5.88	1.46	1.46	3.1	3.1	9.31	9.31	0.142
	2.6	3.51	2.75	7.14	7.14	1.43	1.43	3.76	3.76	11.51	11.51	0.139
	3.2	4.19	3.29	8.18	8.18	1.4	1.4	4.3	4.3	13.45	13.45	0.136
	4	5.03	3.95	9.26	9.26	1.36	1.36	4.87	4.87	15.67	15.67	0.131
40 x 40	2.6	3.72	2.92	8.45	8.45	1.51	1.51	4.22	4.22	13.63	13.63	0.147
	2.9	4.09	3.21	9.11	9.11	1.49	1.49	4.56	4.56	14.85	14.85	0.145
	3.2	4.45	3.49	9.72	9.72	1.48	1.48	4.86	4.86	16	16	0.144
	4	5.35	4.2	11.07	11.07	1.44	1.44	5.54	5.54	18.75	18.75	0.139s
49.5 x 49.5	2.6	4.7	3.69	16.91	16.91	1.9	1.9	6.83	6.83	27.19	27.19	0.185
	2.9	5.19	4.07	18.37	18.37	1.88	1.88	7.42	7.42	29.81	29.81	0.183
	3.6	6.28	4.93	21.42	21.42	1.85	1.85	8.66	8.66	35.54	35.54	0.179
	4.5	7.58	5.95	24.64	24.64	1.8	1.8	9.96	9.96	42.15	42.15	0.175
60 x 60	2.6	5.8	4.55	31.33	31.33	2.33	2.33	10.44	10.44	50.08	50.08	0.227
	2.9	6.41	5.03	34.21	34.21	2.31	2.31	11.4	11.4	56.12	56.12	0.225
	3.2	7.01	5.5	36.94	36.94	2.3	2.3	12.31	2.31	60.02	60.02	0.224
	4	8.55	6.71	43.55	43.55	2.26	2.26	14.52	14.52	72.41	72.41	0.219
	4.8	10.01	7.85	49.22	49.22	2.22	2.22	16.41	16.41	83.86	83.86	0.215
72 x 72	3.2	8.54	6.71	66.32	66.32	2.79	2.79	18.42	18.42	106.81	106.81	0.272
72 x 72	4	10.47	8.22	79.03	79.03	2.75	2.75	21.95	21.95	129.85	129.85	0.267
	4	12.31	9.66	90.31	90.31	2.71	2.71	25.09	25.09	151.55	151.55	0.263
80 x 80	3.2	9.57	7.51	92.71	92.71	3.11	3.11	23.18	23.18	148.55	148.55	0.304
	4	11.75	9.22	111.04	111.04	3.07	3.07	27.76	27.76	181.22	181.22	0.299
	4.8	13.85	10.87	127.58	127.58	3.04	3.04	31.89	31.89	212.26	212.26	0.295
91.5 x 91.5	3.6	12.32	9.67	156.49	156.49	3.56	3.56	34.21	34.21	251.17	251.17	0.347
	4.5	15.4	11.88	187.57	187.57	3.52	3.52	41	41	306.78	306.78	0.343
	5.4	17.85	14.01	215.68	215.68	3.48	3.48	47.14	47.14	359.76	359.76	0.338
100 x 100	4	14.95	11.73	226.35	226.35	3.89	3.89	45.27	45.27	364.75	364.75	0.379
	5	18.36	14.41	271.1	271.1	3.84	3.84	54.22	54.22	441.84	441.84	0.374
	6	21.63	16.98	311.47	311.47	3.79	3.79	62.29	62.29	511.8	511.8	0.369
113.5 x 113.5	4.8	20.28	15.92	393.3	393.3	4.4	4.4	69.3	69.3	637.45	637.45	0.429
113.5 x 113.5	5.4	22.6	17.74	432.58	432.58	4.38	4.38	76.23	76.23	708.69	708.69	0.426
132 x 132	4.8	23.83	16.71	634.39	634.39	5.16	5.16	96.12	96.12	1018.3	1018.3	0.503
132 x 132	5.4	26.59	20.88	700.11	700.11	5.13	5.13	106.08	106.08	1134.25	1134.25	0.5
150 x 150	4	22.95	18.01	807.82	807.82	5.93	5.93	107.71	107.71	1273.46	1273.46	0.579
	5	28.36	22.26	982.12	982.12	5.89	5.89	130.95	130.95	1569.09	1569.09	0.574
	6	33.63	26.4	1154.91	1154.91	5.84	5.84	152.7g	152.7g	1856.18	1856.18	0.569
	7	38.78	30.44	1299.44	1299.44	5.79	5.79	173.26	173.26	2134.99	2134.99	0.564
	8	43.79	44.38	1443	1443	5.74	5.74	192.4	192.4	2405.78	2405.78	0.559
180 x 180	4	27.75	21.78	1421.74	1421.74	7.16	7.16	157.97	157.97	2224.31	2224.31	0.699
	5	43.36	26.97	1736.87	1736.87	7.11	7.11	192.99	192.99	2747.93	2747.93	0.694
	6	40.83	32.05	2036.52	2036.52	7.06	7.06	226.28	226.28	3259.23	3259.23	0.689
	7	47.18	33.03	2321.04	2321.04	7.01	7.01	257.89	257.89	3758.53	3758.53	0.684
	8	53.39	41.9	2590.73	2590.73	6.97	6.97	287.86	287.86	4246.16	4246.16	0.679
220 x 220	4	34.15	26.61	2639.14	2639.14	8.79	8.79	239.92	239.92	4099.49	4099.49	0.859
	5	42.36	33.25	3238.02	3238.02	8.74	8.74	294.37	294.37	5076.22	5076.22	0.854
	6	50.43	39.59	3813.36	3813.36	8.7	8.7	346.67	346.67	6034.73	6034.73	0.849
	7	58.38	45.83	4365.55	4365.55	8.65	8.65	396.67	396.67	6974.82	6974.82	0.844
	8	66.19	51.96	4894.99	4894.99	8.6	8.6	445	445	7897.48	7897.48	0.839
250 x 250*	4	38.95	30.57	3907.3	3907.3	10.02	10.02	312.58	312.58	6045.4	6045.4	0.979
	5	48.36	37.96	4805.01	4805.01	9.97	9.97	384.4	384.4	7494.83	7494.83	0.974
	6	57.63	45.24	5672	5672	9.92	9.92	453.76	453.76	8920.44	8920.44	0.969
	7	66.78	52.42	6508.73	6508.73	9.87	9.87	520.7	520.7	10322.7	10322.7	0.964
	8	75.79	59.5	7315.65	7315.65	9.82	9.82	585.25	585.25	11702.07	11702.07	0.959
